A high quality AC Inverter for 2.2kW (3HP) 230V three phase motor.

Converts fixed frequency single phase 230V input to variable frequency three phase 230V to control the speed of a standard AC Induction motor. Operates in standard VxFand Sensorless Vector control mode.

Output rating to 10A; 5kHz, 50°C Ambient
Overload: 150% for 60s every 10min; 200% for 3s every 10min.

Size B: 199mm (High) x 70mm (Wide) x 159mm (Deep); 222mm (High with mounts); IP20.
Weight: 1.34kg.

Speed Control Range: 0-400Hz
Dynamic Braking (DBr): Included as standard. (Does not have to be used; available if required)
Min Brake Resistance: 39 Ohms; Braking Current 10A. (Fit resistor only if Dynamic Braking is required).

Fixed Keypad (HMI) with LCD Display.
1 x Analogue Inputs, 4 x Digital Inputs, 0 x Analogue Output, 1 x Volt Free Change Over Contact (250VAC, 0.5A Max)
STO: Not available

Input Current: 22A (single phase 230V) or 12A (three phase 230V)
Input Voltage: 200V to 240V AC single phase or three phase, (-15% to +10%). 50/60Hz (48Hz to 62Hz)
EMC Compliance: No internal filter fitted. IEC 61800-3; Second Environment C3 (Industrial) with external filter fitted please see linked products below. (Filter is only suitable for single phase 230V supply; no filter available for three phase 230V supply)

Cubicle mount.
Rated Operating Temperature: 50°C Ambient.
Ventilation space: 35mm above; 50mm below, at sides: 0mm, in front: 40mm.
Heat Loss at max output: 100W.
Mounting: DIN (35mm rail) or via 4 x M4 fixings at rear on 212mm x 37mm centres

2 Options Slots available. (1 x Upper Slot, 1 x Lower Slot)

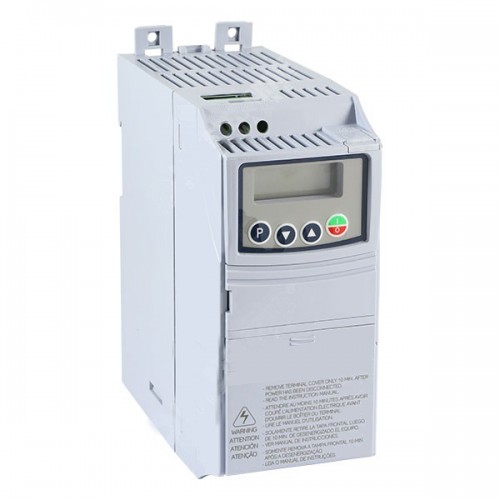

Please note the picture is for illustrative purposes only and the exact specifications are subject to change.
