A precision stepper motor for your CNC projects

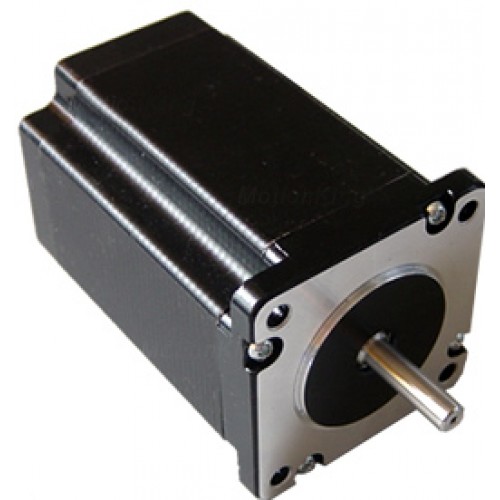

MAES 24, 24H2A High Torque Stepper Motors -60mm(1.8 degree)

Step Accuracy ------------------------------ ±5%
Resistance Accuracy ----------------------- ±10%
Inductance Accuracy ---------------------- ±20%
Temperature Rise -------------------------- 80°C MAX.
Ambient Temperature Range ------------- -20°C~ +50°C
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength ------------------------- 500V AC 1min
Radial Play --------------------------------- 0.02mm MAX. (450g Load)
End Play ------------------------------------ 0.08mm MAX. (450g Load)
Max. radial force --------------------------- 75N
Max. axial force ---------------------------- 15N

• Motor Length 100mm
• Rated current 4.2A
• Phase resistance 0.8 Ohm
• Phase inductance 3.5mh
• Holding torque 330N.cm/min
• Rotor inertia 880g.cm/2
• Lead wires 4

• Weight 1800g
