A precision stepper motor for your CNC projects

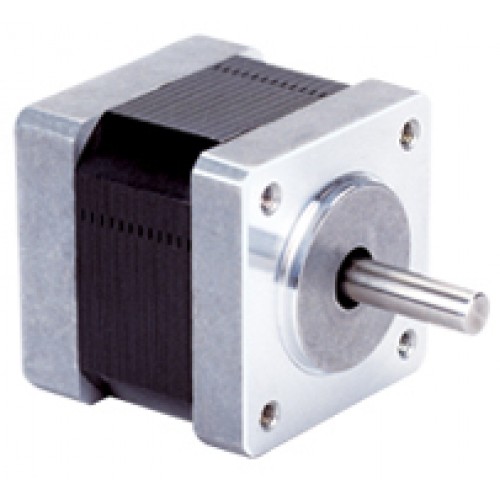

MAES 14, 14H2M Stepper Motor -35mm(0.9 degree)

Step Accuracy ------------------------------ ±5%
Resistance Accuracy ----------------------- ±10%
Inductance Accuracy ---------------------- ±20%
Temperature Rise -------------------------- 80°C MAX.
Ambient Temperature Range ------------- -20°C~ +50°C
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength ------------------------- 500V AC 1min
Radial Play --------------------------------- 0.02mm MAX. (450g Load)
End Play ------------------------------------ 0.08mm MAX. (450g Load)
Max. radial force --------------------------- 28N
Max. axial force ---------------------------- 10N

• Motor Length 34mm
• Rated current 0.4A
• Phase resistance 430 Ohm
• Phase inductance 18mh
• Holding torque 10N.cm/min
• Detent torque 0.6N.cm/max
• Rotor inertia 18g.cm/2
• Lead wires 6
• Weight 190g
