A precision stepper motor for your CNC projects

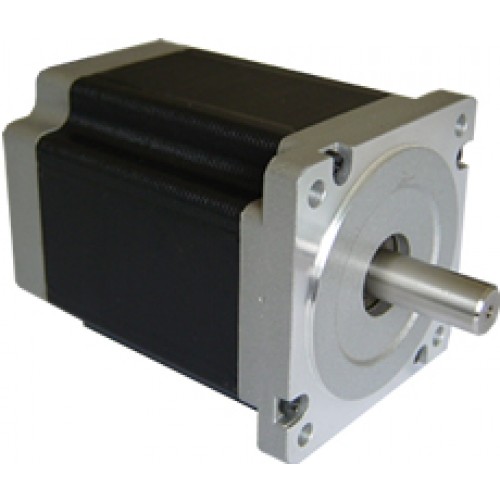

MAES 34, 34H2A Stepper Motors -86mm(1.8 degree)

Step Accuracy ------------------------------ ±5%
Resistance Accuracy ----------------------- ±10%
Inductance Accuracy ---------------------- ±20%
Temperature Rise -------------------------- 80°C MAX.
Ambient Temperature Range ------------- -20°C~ +50°C
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength ------------------------- 820VAC, 1s, 3mA
Radial Play --------------------------------- 0.02mm MAX. (450g Load)
End Play ------------------------------------ 0.08mm MAX. (450g Load)
Max. radial force --------------------------- 220N
Max. axial force ---------------------------- 60N

• Motor Length 98mm
• Rated current 4A
• Phase resistance 0.98 Ohm
• Phase inductance 4.1mh
• Holding torque 490N.cm/min
• Detent torque 9.5N.cm/max

• Rotor inertia 1550g.cm/2
• Lead wires 8

• Weight 3000g
